DIN 571 Hex Wood Screws
DIN 571 Hex Wood Screws, also known as Hexagon Lag Screws, made of steel, zinc plated, size M5-M16, Length from 10mm to 200mm from China Hex Wood Screws Manufacturer
 |
 |
DIN 571 Hex Wood Screws , Hexagon Lag Screw
Made of Carbon steel, Zinc Plated
Size: M5 – M16

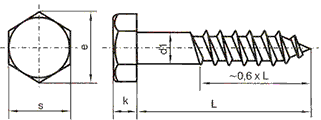

DIN 571 Hex Wood Screws Specification as below:
| Size [d1] |
Across Flat [s] |
Across Corner [e] |
Head Thickness [k] |
| M5 | 8 | 8.63 | 3.5 |
| M6 | 10 | 10.89 | 4 |
| M8 | 13 | 14.2 | 5.5 |
| M10 | 17 | 18.72 | 7 |
| M12 | 19 | 20.88 | 8 |
| M16 | 24 | 26.17 | 10 |
