DIN 94 Split Pins / Cotter Pins

DIN 94 Split Pins, cotter pins made of steel , zinc plated size D1.0-d10.00mm from China Split Pins / Cotter Pins Manufacturer

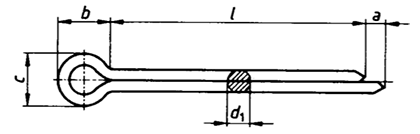

DIN 94 Split Pins / Cotter Pins DIN 94 Split Pins / Cotter Pins drawing

DIN 94 Split Pins , Cotter Pins , ISO 1234
Made of mild steel, Zinc Plated
Standard: DIN 94
Size: D1.0-d10

DIN 94 Split Pins Specification as below:

Size
[d1]
Length of End
[a max.]
Length of Head
[b]
Head Dia.
[c mam.]
1.0 1.6 3 1.8
1.2 2.5 3 2
1.6 2.5 3.2 2.8
2.0 2.5 4 3.6
2.5 2.5 5 4.6
3.2 3.2 6.4 5.8
4.0 4 8 7.4
5.0 4 10 9.2
6.3 4 12.6 11.8
8.0 4 16 15
10 6.3 20 19
13 6.3 26 24.8
